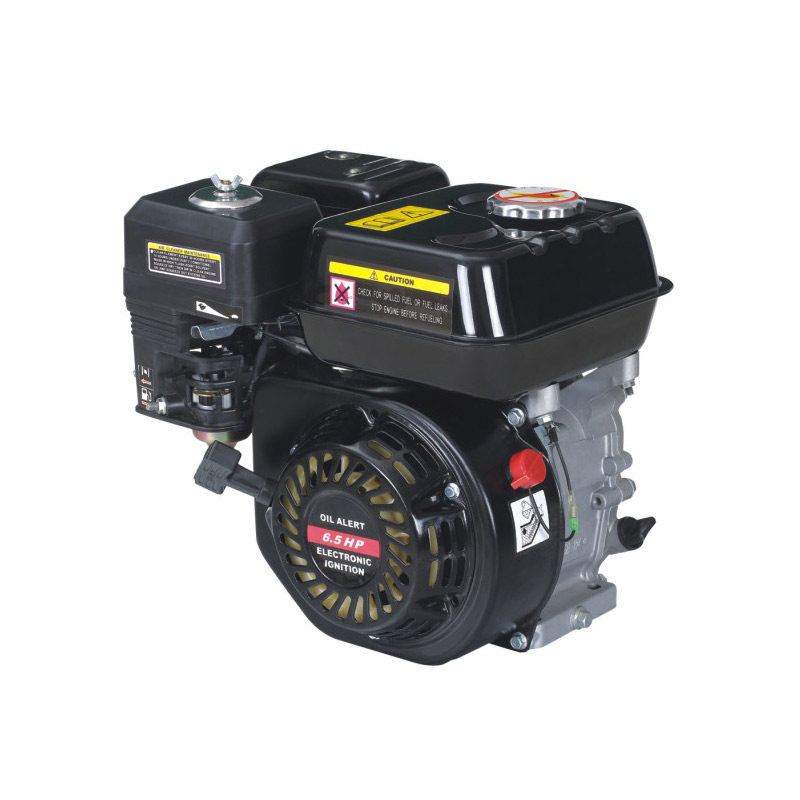

| 型號Model | SML 168F | SML 168F-1 | SML 170F | SML 188F |
| 發動機形式(Engine Type) | 單缸、4沖程、強制風冷、OHV、水平軸、汽油機 Air-cooled;4 -stroke;OHV,Single cylinder | |||
| 缸徑X行程(Borex Stroke) | 68x45mm | 68x54mm | 70x54mm | 88x64mm |
| 排量(Displacement) | 163cc | 196cc | 210cc | 389cc |
| 壓縮比(Compression Ratio) | 8.5:1 | 8.5:1 | 8.5:1 | 8.0:1 |
| 最大功率(Max.Power Output) | 5.5hp | 6.5hp | 7.0hp | 13hp |
| 最大扭矩(Max.Torque) | 10.8N.m | 13.2N.m | 14N.m | 26.5N.m |
| 點火方式(lgnition System) | 晶體管點火(Transistor Magneto) | |||
| 啟動方式(Starting System) | 手拉/電啟動(Recoil/Electric) | |||
| 機油容量(Lube.Oil Capacity) | 0.6L | |||
| 燃油容量(Fuel Tank Capacity) | 3.6L | |||
| 最低燃油消耗率(Min.Fuel Consumption) | 360g/kw.h | |||
| 功率輸出形式(Power Take Off) | 1:01 | |||
| 輸出軸轉向(Crankshaft Direction) | 左(Left) | |||
| 外形尺寸(Dimension)(LxWxH)(mm) | 395x330x355 | 600x500x540 | ||
| 凈重/毛重(N.W/G.W) | 14/15 | 62/65 | ||
| 空濾器形式(Air Cleaner) | 半干、油浴、雙式(Semi-dry;Oil bath;Dual) | |||
